VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Orange County, CA | Westlight Windows Orange County

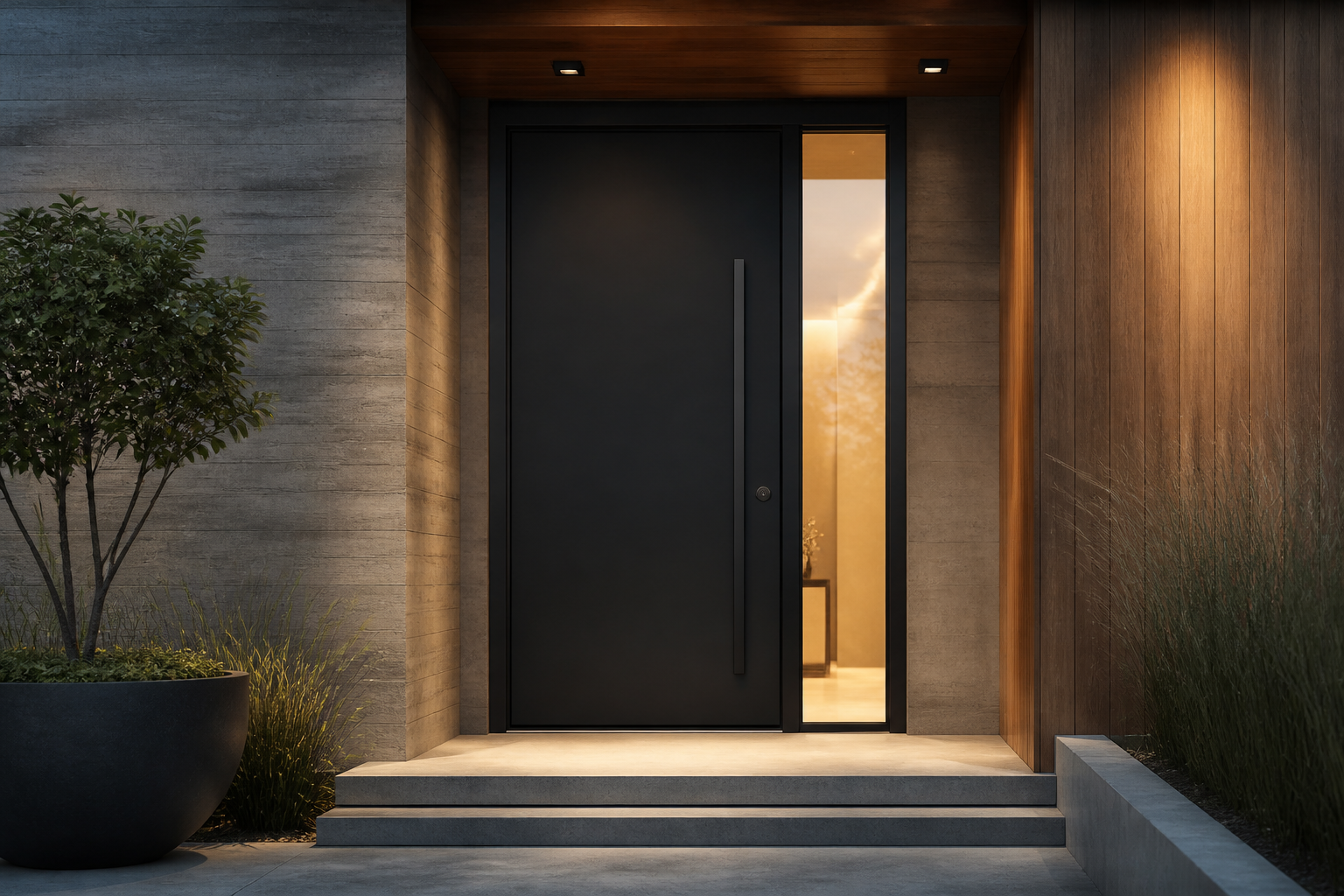

The VLX 100 Swing / Entry Door is a modern aluminum entry system built around a slim 2.56-inch frame and a multi-point lock that engages at three separate points along the jamb. It’s the door homeowners in Irvine, Newport Beach, Huntington Beach, and across Orange County choose when they want a clean sightline without giving up security or thermal performance. Westlight Windows Orange County is an authorized ViewLux installation partner, which means we sell the door, install it to the manufacturer’s tolerance, and stand behind the finished opening. Call (424) 414-2048 to schedule a free on-site measurement and quote.

Call (424) 414-2048

Product Overview – VLX 100 Swing / Entry Door

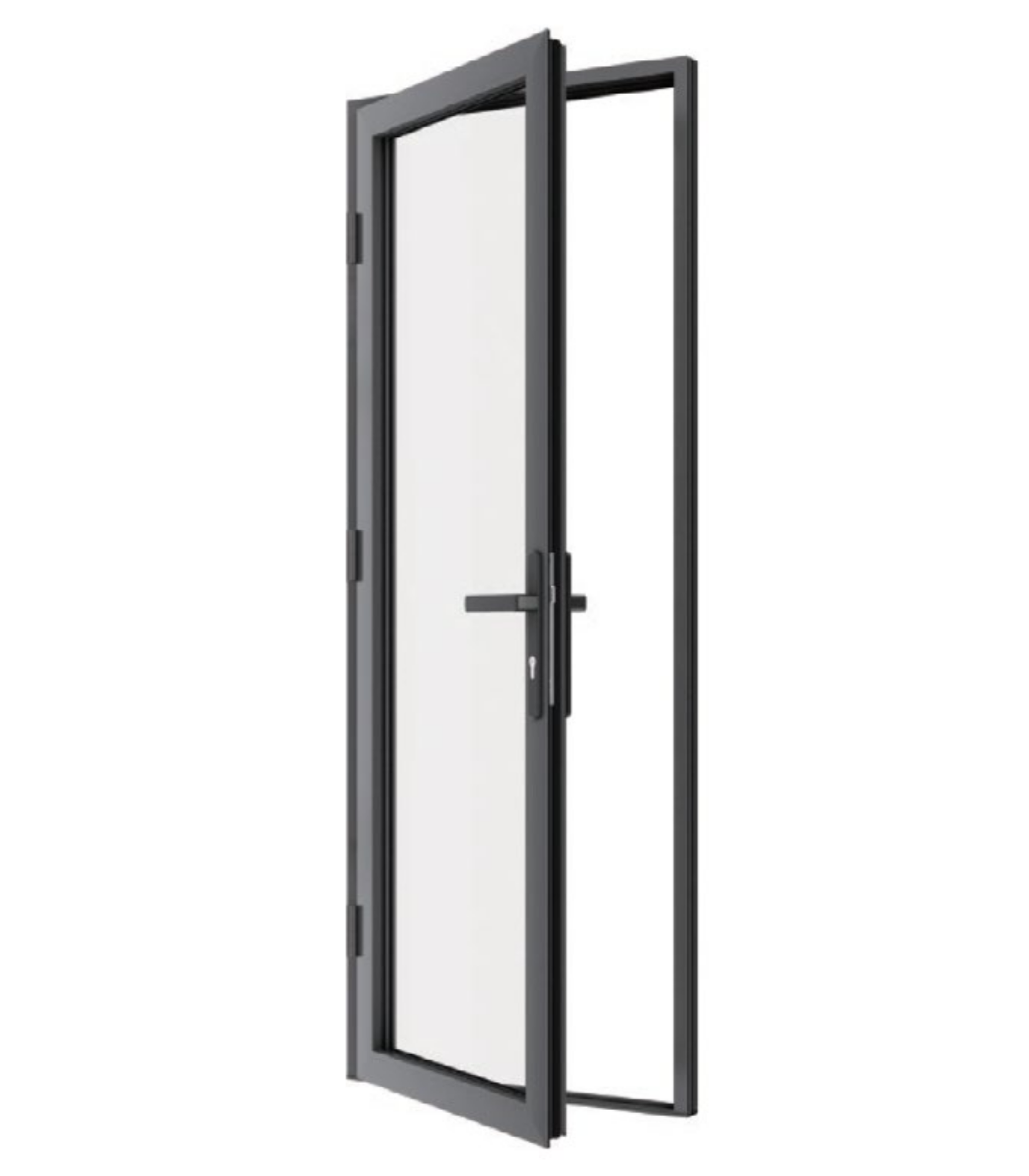

The VLX 100 is a single entry door with a minimalist aluminum frame and a multi-point locking mechanism. The frame wall measures 0.098 inches thick, and the profile spans 2.56 inches, which is noticeably slimmer than most commercial-grade aluminum doors you’ll see in Orange County storefronts or patio retrofits. That narrow profile is the whole point: more glass, less metal, cleaner lines.

Architecturally, this door lands well in the mid-century modern homes of Anaheim Hills, the new coastal builds in Newport Beach, the Spanish-inspired renovations in San Clemente, and the contemporary lofts of downtown Santa Ana. The aluminum construction means the slab won’t swell, bow, or rub when humidity climbs in late summer, a real problem with wood entry doors in Southern California’s marine layer zones.

Buyers choose the VLX 100 over wood or fiberglass for three reasons. First, the frame is straight and stays straight. Second, the multi-point locking gives real security without the look of a deadbolt-heavy commercial door. Third, the thermal break inside the frame keeps the interior face from conducting heat, which matters on west-facing entries in cities like Yorba Linda and Tustin where afternoon sun pounds the front door. The door is rated for spans up to 48 inches wide, so it can replace an older double-door setup with a single, wider panel.

Technical Specifications

Here’s what the VLX 100 brings to the table. We keep these numbers honest because we quote them every day in Orange County:

• Wall thickness: 0.098-inch extruded aluminum, which resists dents from strollers, bike handlebars, and the occasional surfboard carried through the entry.
• Profile width: 2.56 inches, one of the narrower frames available on a swing door rated for this span.
• Maximum span: Up to 48 inches wide as a single panel, subject to structural review of the rough opening.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, and Laminated (impact-resistant).
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable screen available, or none for a clean entry line.

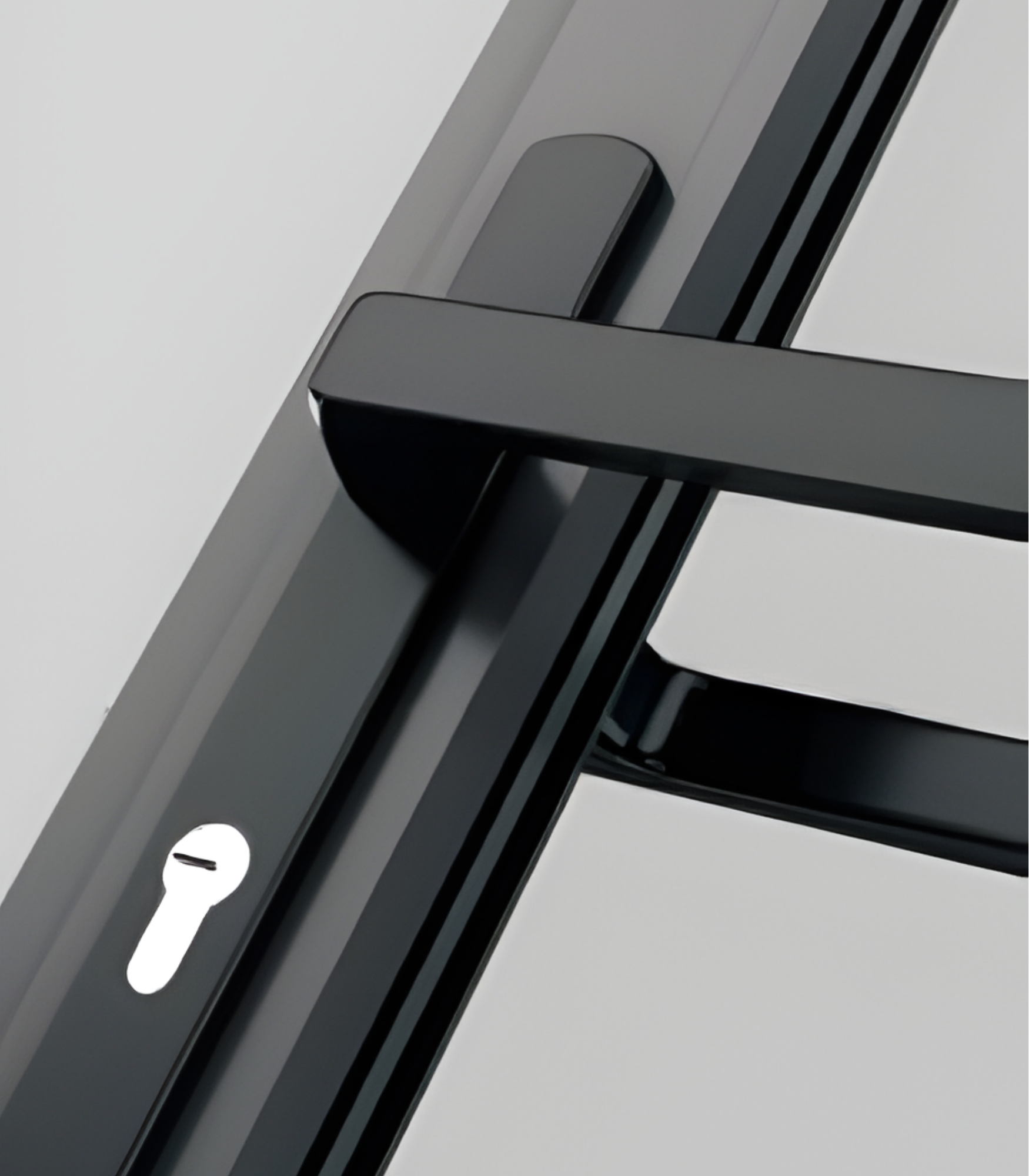

• Hardware: Multi-point locking with a single throw engaging three latch points.

Performance Features

Thermal Efficiency: The frame is built with a thermal break, which separates the exterior and interior aluminum faces. That means the door carries an NFRC-rated energy performance, and the inside of the frame won’t feel warm to the touch in a Laguna Niguel afternoon sun. Paired with Low-E glass, it keeps the entry from becoming a heat source.

Acoustic Performance: If you live off a busy corridor like the 55, the 405, or PCH, the sound rating matters. The VLX 100’s tight frame fit plus laminated glass cuts road and street noise meaningfully. We recommend laminated glass for entries facing arterial roads in Costa Mesa, Fountain Valley, or Garden Grove.

Airtightness & Weather Seal: The door is designed with continuous compression gaskets around the full perimeter. We install every VLX 100 with AAMA 812 low-expansion foam sealant on all joints, which keeps the airtightness rating intact and stops drafts through the rough opening.

Waterproofing: Water in Orange County comes from the sky in winter and from sprinkler overspray year-round. The sill and perimeter seal system is engineered to keep water outside. AAMA 2400/2410 installation compliance means the rough opening is flashed and sealed before the door ever goes in.

Wind Resistance: The door is wind-load rated for Southern California climate requirements. In canyons like Silverado or foothill cities like Lake Forest, wind loads can matter more than coastal buyers expect. The aluminum slab and multi-point lock hold the panel tight in sustained wind.

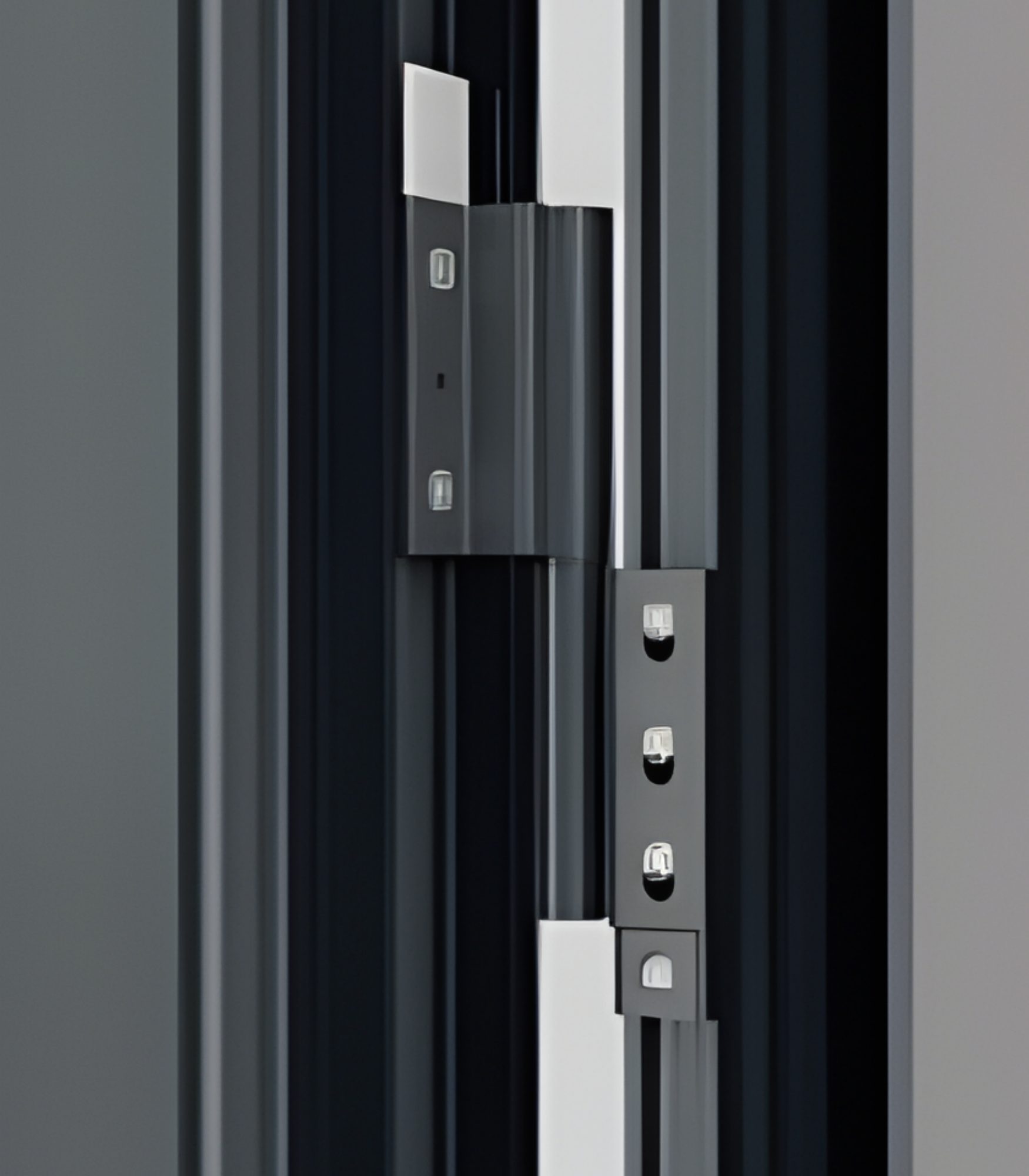

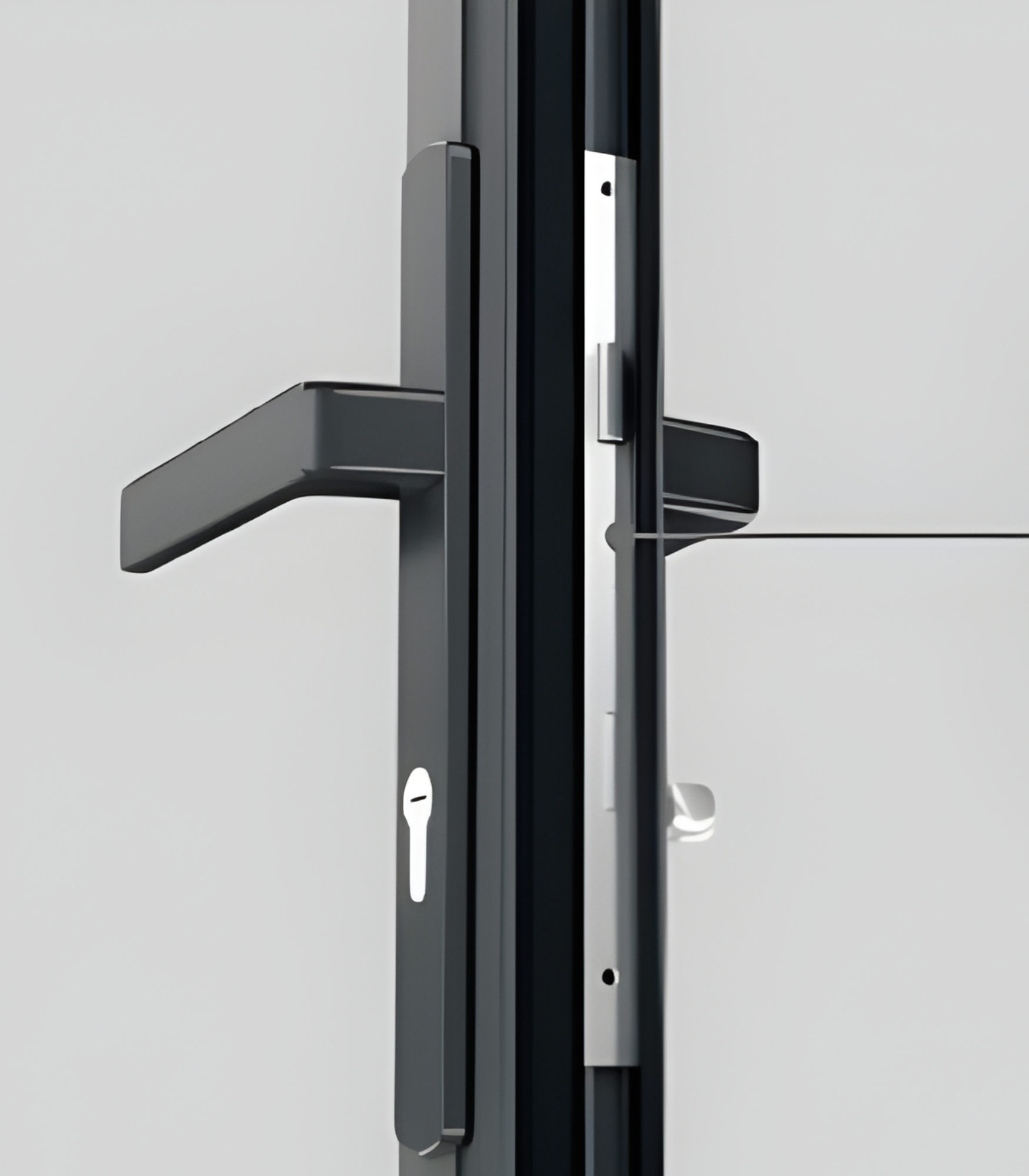

Security & Hardware: The multi-point lock engages three anchoring points in the jamb with one thumb turn. That’s a meaningful upgrade against forced entry compared to a single deadbolt. The aluminum frame and recessed track make prying the frame difficult, and the hinges are internal to the profile.

Color & Glass Options

Premium Black is the most requested finish in Orange County right now, especially on white or light stucco homes with black window frames. It reads as architectural and sharp.

Pure White suits traditional and transitional homes in neighborhoods like Old Towne Orange or San Juan Capistrano. It matches painted wood trim without the maintenance.

Anodized Silver has the classic aluminum look, works well on coastal modern homes, and hides salt-air wear better than painted finishes. We suggest it for beach properties in Huntington Beach and Balboa Island.

Bronze is warm without being heavy. It pairs well with wood siding and works in both modern and Mediterranean designs.

Champagne is a lighter metallic tone that reads upscale and blends with travertine or limestone entry surrounds.

Teak Wood is a wood-grain aluminum finish that mimics warm wood without the swelling, warping, or termite issue. It’s a popular choice for HOA communities in Irvine and Mission Viejo that want wood aesthetics.

On the glass side: clear for maximum light, frosted for privacy without losing daylight, obscure for full privacy with texture, Low-E for energy efficiency on sun-facing doors, tempered for safety and code compliance, and laminated for impact resistance and sound control.

Installation by Westlight Windows Orange County in Orange County

An entry door only performs as well as the rough opening it goes into. We see the failures from other installs every month in Orange County: doors out of level, slabs that bind, weather seals that don’t seat, frames that leak at the first rain. That’s why our install team follows a set sequence on every VLX 100.

We start with a pre-installation inspection of the rough opening: stud condition, moisture readings, existing flashing, and header support. If the door spans up to 48 inches, the header has to be sized correctly, and many older Orange County homes built in the 1960s and 1970s were not framed for a wide single door. We check before we order.

The door is set level, plumb, and square. That’s not installer jargon; it’s the difference between a slab that swings smooth and one that sags after six months. We verify at three points on each jamb. Then we apply AAMA 812 low-expansion foam to every perimeter joint, install backer rod where needed, and seal the exterior with approved flashing and sealant. The install complies with AAMA 2400/2410, the industry standard for window and door installation. A final water test is done on the sill and lower corners before we call the job complete.

One note for Orange County homeowners: improper installation voids the manufacturer warranty. Not the door’s fault if the rough opening leaks or the frame is racked. We’re ViewLux-authorized, which means ViewLux recognizes our installations under their warranty terms. If you buy the door from one source and hire a random crew to install it, you are on your own when a claim comes up.

Frequently Asked Questions – VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door? Custom-sized VLX 100 doors typically ship within 4 to 6 weeks from order confirmation, depending on finish and glass. Standard sizes can move faster. Call (424) 414-2048 and we’ll check current ViewLux production schedules for your configuration.

Does the VLX 100 qualify for energy tax credits? It can, when ordered with Low-E glass that meets the current federal energy efficiency thresholds. The NFRC-rated thermal break frame helps the overall door meet requirements. We can discuss your eligibility when we quote the door.

What warranty comes with the Swing / Entry Door? ViewLux provides a manufacturer warranty on the frame, glass, and hardware, and Westlight Windows Orange County backs our labor with a written workmanship warranty. The manufacturer warranty depends on authorized installation, which is exactly what we do.

Can I customize the size? Yes. The VLX 100 is made to order for your rough opening up to a 48-inch wide single panel. Custom widths, heights, and sill configurations are all available. We measure every opening in Orange County before ordering.

How do I maintain aluminum frames? Wash the frame and glass with mild soap and water twice a year, more often near the coast where salt air builds up. Coastal cities like Newport Beach and Dana Point see more salt residue on the frame. We recommend rinsing the sill track and checking the sweep for debris at least quarterly.

Get a Quote – VLX 100 Swing / Entry Door in Orange County

Pricing for the VLX 100 depends on size, glass, finish, and the condition of your existing rough opening. We give you a fixed written quote after a free on-site measurement, no changing numbers when the job starts. Call (424) 414-2048 to schedule yours, or tell us about your project and we’ll walk you through what the door costs installed in Orange County.

Written by the team at Westlight Windows Orange County, serving Orange County, CA with ViewLux door and window installations.
