VLX 500 Sliding Window

VLX 500 Sliding Window in Orange County, CA | Westlight Windows Orange County

The VLX 500 Sliding Window is a high-performance aluminum sliding system built on a slim 1.97-inch profile with an effortless, one-finger glide. Orange County homeowners choose it when they want wide openings, clean sightlines, and a frame that won’t warp in coastal air. Westlight Windows Orange County is an authorized ViewLux installation partner in Orange County, which means you get the window and the install under one roof, with a single point of accountability. Call (424) 414-2048 to talk through sizing, track configuration, and finish options for your Orange County home.

Call (424) 414-2048

Product Overview – VLX 500 Sliding Window

Think of the VLX 500 as the window you notice least but use most. It’s a high-performance aluminum sliding system with a slim profile and effortless glide, offered in both 2-track and 3-track configurations. The engineering priorities are straightforward: a nearly frameless view, a panel that opens with minimal effort, and a structure that stays square and true for decades. That’s rare in aluminum windows. Cheap frames flex. The VLX 500 doesn’t.

The profile measures 1.97 inches wide, which is notably narrow for an aluminum system carrying large glass panels. Narrower profile means more glass, more natural light, and a cleaner architectural line. The wall thickness is 0.079 inches, a deliberate choice that balances structural stiffness with weight savings. That rigidity matters in Orange County, where windows catch marine-layer humidity at the coast and triple-digit heat inland. The frame doesn’t swell, stick, or sag. It just keeps sliding.

Where this window fits best: 1970s-to-1990s ranch homes in Mission Viejo and Lake Forest that are being re-glazed for the first time, contemporary spec builds in Irvine’s Great Park neighborhoods, mid-century restorations in Anaheim and Garden Grove, and coastal condos in Huntington Beach or Newport Beach where sliding glass doors and windows take the brunt of salt air. The 3-track version suits wider openings where you want two operable panels and a fixed lite, or where you want a retractable screen integrated into the frame. The 2-track version is the clean, minimalist option for standard-width openings.

Technical Specifications

Here’s what you’re getting with every VLX 500 Sliding Window we install in Orange County:

• Profile width: 1.97 inches, measured across the visible frame face. Slim enough to read as “almost frameless” from across the room.
• Wall thickness: 0.079 inches. This is the aluminum extrusion thickness. It’s the number that determines whether a frame twists when the glass panels weigh it down. This one doesn’t.
• Track configurations: 2-Track for a two-panel slide, or 3-Track when you want multiple operable panels, a wider opening, or a recessed screen track.
• Glass options: Clear (maximum light), Frosted (privacy for bathrooms and street-facing bedrooms), Low-E (thermal control, UV reduction), Tempered (safety glazing, code-compliant for doors and low sills), Laminated (impact resistance and sound damping).
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood powder coat.
• Screen options: Retractable Screen (disappears into the frame when not in use) or a standard Sliding Screen (stays in place, easy to wash).

Performance Features

Thermal Efficiency

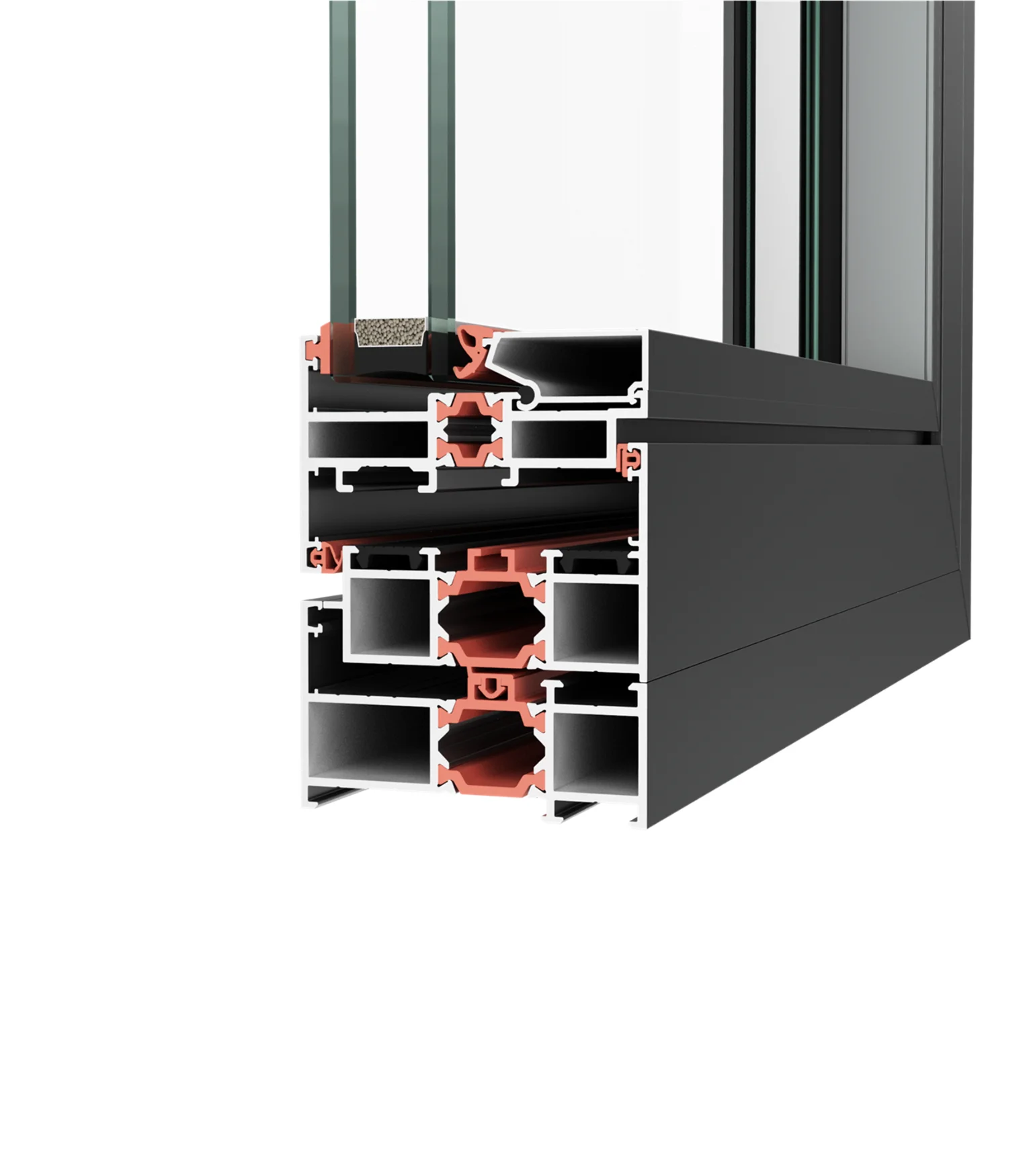

The VLX 500 uses thermal break technology to separate the interior and exterior aluminum surfaces, which stops heat from conducting through the frame. Paired with Low-E glass, this assembly carries NFRC-rated energy performance that holds up in Orange County’s inland heat zones like Yorba Linda and Tustin, where summer afternoon sun pounds west-facing windows.

Acoustic Performance
Aluminum frames don’t muffle sound on their own. The acoustic story here comes from the glass. Laminated glass combined with the VLX 500’s airtight perimeter seal cuts down on freeway hum, which matters if you live near the 5, the 405, the 55, or the 91 in Orange County. The difference between laminated and standard tempered glass is noticeable in bedrooms facing arterial roads.

Airtightness and Weather Seal
Every VLX 500 we install gets a continuous perimeter seal using AAMA 812 low-expansion foam at every joint. That’s the difference between a window that seals and one that leaks air through the gaps between the frame and the rough opening. The result is a tight, draft-free assembly that holds interior temperatures steady.

Waterproofing
Sliding window tracks are the first place water enters a building if the install is sloppy. The VLX 500’s sill design channels water outward, and our installation process includes leveling the sill so water drains away from the interior. Orange County’s winter rains aren’t extreme, but stucco walls and wood framing rot the same way when water finds a path in.

Wind Resistance
The VLX 500 frame carries wind-load ratings that meet local climate requirements for Orange County, including hillside exposure in places like Coto de Caza and coastal gusts in Dana Point. Large glass panels get pushed hard by wind. The 0.079-inch wall thickness and multi-track interlock system are engineered to handle that load without bowing or vibrating.

Security and Hardware
The interlocking panels on the 3-track VLX 500 create a structural barrier that’s harder to pry than a traditional single-hung window. Laminated glass adds a shatter-resistant layer that delays forced entry. Match that with the right lock set and the VLX 500 becomes a legitimate security upgrade for ground-level windows in Orange County.

Color and Glass Options

The VLX 500 comes in six finishes. Premium Black is the strongest choice for modern and transitional homes. It frames the view the way a dark border frames a photograph, and it reads as intentional against white stucco or light-toned exteriors. Pure White disappears into traditional and coastal homes, especially in Orange County areas like San Clemente and Laguna Niguel where white trim has been the default for decades. Anodized Silver is the original aluminum look: industrial, honest, low-maintenance. Bronze and Champagne sit between the extremes. Bronze warms up a facade without the commitment of black. Champagne reads as a soft neutral, closer to a champagne-tone metallic that plays well with warm-gray and greige exterior palettes you see across Irvine and Aliso Viejo. Teak Wood powder coat is the surprise option: a wood-look finish on an aluminum frame, which means you can match the look of mid-century wood windows without the rot, repainting, and termite exposure that wood frames carry in Southern California.

On the glass side: Clear maximizes daylight and costs the least. Frosted solves privacy for bathrooms, entryways, and street-facing rooms where you still want light. Low-E is what we recommend for most Orange County homes because it cuts both solar heat gain in summer and radiant heat loss in winter; it also filters UV, which protects furniture, flooring, and art. Tempered glass shatters into small cubes instead of jagged shards, which makes it the right call for large panels, low sills, and areas where kids or pets are in the picture. Laminated glass bonds two panes together with a plastic interlayer. That layer is what gives laminated glass its impact resistance and its acoustic damping. It’s the upgrade to choose for noise reduction and storm safety.

Installation by Westlight Windows Orange County in Orange County

A well-built window installed badly performs worse than a cheap window installed well. That’s why every VLX 500 Sliding Window we sell in Orange County is installed by our own crew. We’re an authorized ViewLux installation partner, which means you’re not handing a premium product to a subcontractor who’s never seen the system before.

Our process starts with a pre-install inspection of the rough opening. We check for dry rot, check the framing dimensions against the ordered window, and verify the opening is square. If the framing isn’t right, we stop and fix it before the window goes in. Trying to shim a bowed opening into square is how you end up with a track that binds.

The window gets set level, plumb, and square. Not close. Not “looks fine.” Level, plumb, and square. For a sliding window, that’s what makes the glide effortless, keeps the panels aligned, and prevents the sash from creeping open or closed on its own over time.

We seal every perimeter joint with AAMA 812 compliant low-expansion foam, then run a full weather seal around the exterior perimeter. Every install follows AAMA 2400/2410 installation standards, which is the reference point the building industry uses for proper window installation. Improper installation voids the manufacturer’s warranty, and it’s the number one reason premium windows fail in the field. We finish with a water test on the assembled unit, a final inspection, and a full cleanup of the work area. The Orange County climate, with its marine layer and salt air exposure along the coast, doesn’t forgive shortcuts. Sealants dry out, aluminum pits, and stucco cracks. Our installation sequence accounts for that.

Frequently Asked Questions – VLX 500 Sliding Window

Get a Quote – VLX 500 Sliding Window in Orange County

You’re not just buying a window. You’re buying the install that makes it work. Westlight Windows Orange County will measure, quote, order, and install your VLX 500 Sliding Window, start to finish, in Orange County. Call (424) 414-2048 to schedule a free on-site measurement and project quote.

Written by the team at Westlight Windows Orange County, serving Orange County, CA with premium window installation since 2009.
