VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Orange County, CA | Westlight Windows Orange County

The VLX 80 Fixed / Picture Window is what you choose when the view matters more than anything else. A 1.97-inch aluminum frame carries massive glass panels up to 120 inches wide, with no visible hardware breaking the sightline. It’s floor-to-ceiling glass, uninterrupted. Westlight Windows Orange County is an authorized ViewLux installation partner serving homeowners across Orange County, CA, from Huntington Beach to San Clemente and everywhere between. We sell the window and we install it properly, with AAMA-compliant methods that protect both the warranty and the performance. Call (424) 414-2048 to discuss your project and get a written quote.

Call (424) 414-2048

Product Overview – VLX 80 Fixed / Picture Window

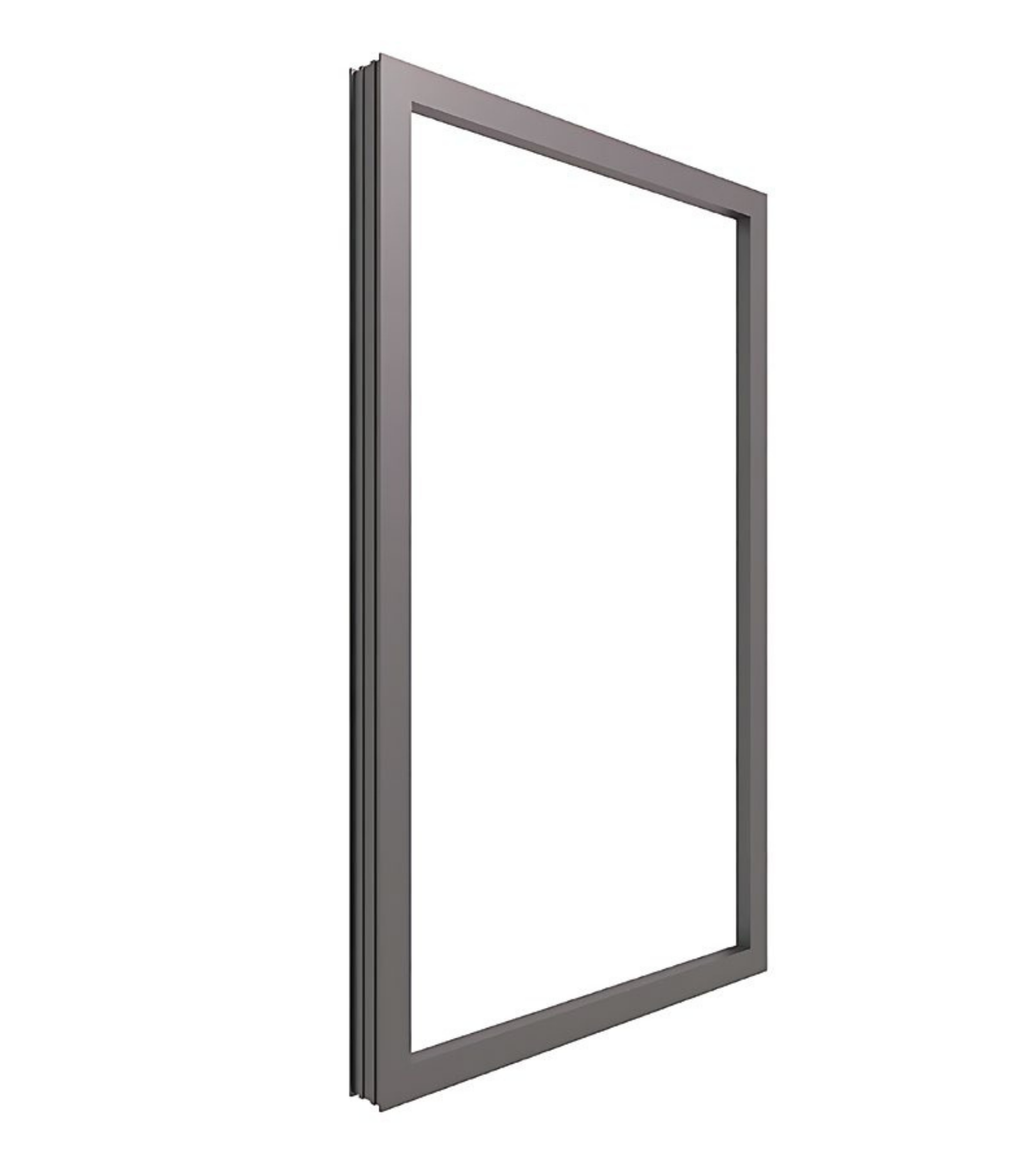

The VLX 80 is a fixed window, meaning it doesn’t open. What it does instead is frame light. The design philosophy is simple: minimize the frame, maximize the glass. At just 1.97 inches wide, the aluminum profile nearly disappears, giving you what architects call a maximally glazed opening. Zero visible hardware. No hinges, no handles, no latches. Just glass meeting frame meeting wall.

In Orange County homes, this window does its best work where the view is the point. Ocean-facing living rooms in Laguna Niguel. Canyon overlooks in Silverado. That wall of glass looking onto a backyard pool in Irvine or Yorba Linda. The VLX 80 handles spans up to 120 inches wide, so a single panel can replace what used to require two or three smaller windows. That’s the difference between looking through a series of openings and looking through one clean plane of glass.

The frame is extruded aluminum with a 0.079-inch wall thickness. That’s thin enough for a sleek sightline but structurally serious enough to hold large glass weight without deflection. Aluminum doesn’t warp, twist, or absorb moisture. In a coastal climate like Orange County, where salt air eats ferrous metals and humidity warps wood, aluminum holds its shape and finish for decades. You’re not buying a window you’ll babysit. You’re buying one that stays square.

Buyers choose the VLX 80 for three reasons: views, durability, and a clean modern aesthetic that works with both new construction and extensively remodeled homes. It’s a window specified by architects and design-build firms, but it’s also the right choice for a homeowner doing one wall of a family room and wanting it to look like a professional designed it. Because in a real sense, the window designs the room.

Technical Specifications

Here’s what the VLX 80 Fixed / Picture Window is, by the numbers, in plain language:

• Frame material: Extruded aluminum, 0.079-inch wall thickness
• Frame profile width: 1.97 inches, engineered for narrow sightlines
• Maximum single-panel span: Up to 120 inches wide
• Configuration: Fixed / non-operable picture window
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Thermal performance: Thermal break technology, NFRC-rated energy performance
• Sound control: Acoustic ratings available depending on glass pack selection
• Weather sealing: Airtight perimeter seal using AAMA 812 low-expansion foam
• Installation standard: AAMA 2400/2410 compliant methodology
• Wind load: Rated for local Orange County climate requirements
• Impact resistance: Available with laminated glass option

That 120-inch maximum span matters. Most off-the-shelf picture windows top out well before that. The VLX 80 gives you flexibility that standard product lines simply don’t offer.

Performance Features

Thermal Efficiency
The VLX 80 frame incorporates a thermal break, which separates the interior and exterior aluminum surfaces to stop heat and cold from conducting through the frame. Measured through NFRC-rated testing, this system reduces heat gain in an Orange County summer and retains interior comfort when coastal nights finally turn cool in December and January.

Acoustic Performance
A fixed window already outperforms operable units for sound reduction because there are no gaps where sashes meet frames. Pair the VLX 80 with laminated glass and you get meaningful attenuation for homes near the 5, the 405, John Wayne Airport flight paths, or busy beach corridors like PCH in Newport Beach and Dana Point.

Airtightness & Weather Seal
Every perimeter joint between the VLX 80 frame and the rough opening gets sealed with AAMA 812 low-expansion foam. This isn’t optional caulk-and-hope work. It’s a specified sealant that expands to fill irregular gaps, stays flexible through temperature swings, and prevents the air leakage that quietly wastes HVAC dollars in homes across Orange County, CA.

Waterproofing
Fixed windows live or die by their water management. The VLX 80 is designed and installed to direct water away from interior surfaces via integrated drainage principles, while the AAMA 2400/2410 installation method adds a pan flashing and sill detail that prevents the slow leaks that rot framing and show up as mold five years after a bad install.

Wind Resistance
Santa Ana winds hit hard, especially in foothill communities like Anaheim Hills, Villa Park, and Rancho Santa Margarita. The VLX 80 is wind-load rated for local climate requirements, and the aluminum frame resists racking and flexing that would stress the glass seals. A large picture window is essentially a sail; the frame and glass spec have to be right.

Security & Hardware
Fixed windows have no operable hardware to pry, which already makes them a tougher entry point than sliders or casements. Add tempered or laminated glass options and you harden the opening further. Laminated glass in particular holds together under impact, which is why it’s frequently specified for Orange County homes where security or impact resistance is a priority.

Color & Glass Options

Six frame finishes cover the full range of Orange County architectural styles. Premium Black is the default choice for modern, minimalist, and mid-century-inspired homes, especially in Irvine new-builds and the contemporary remodels common in Newport Beach and Laguna Beach. Pure White suits traditional, farmhouse, and coastal-cottage styles in communities like San Juan Capistrano and Tustin. Anodized Silver delivers a raw, industrial aluminum look that reads clean in modern interiors. Bronze and Champagne offer warm metallic tones that bridge the contemporary and transitional gap. Teak Wood brings a wood-toned finish without the maintenance or decay issues of actual wood, ideal for Craftsman-style homes in Orange and Fullerton where architectural authenticity matters.

The glass selection changes both performance and appearance. Clear glass is the honest default. Frosted works where you want light but privacy, think bathrooms, side yards, and tight lot lines. Low-E is the energy play, reflecting infrared heat while staying visually clear. Tempered is safety-rated for code-required locations like large fixed panels near floors. Laminated adds impact resistance and sound control. Gray tint and black tint dial down glare and solar gain, which matters in west-facing Orange County rooms that bake in the afternoon sun.

Installation by Westlight Windows Orange County in Orange County

Here’s the thing about picture windows: the product is only half the equation. A poorly installed fixed window leaks air, leaks water, and eats the manufacturer warranty. The warranty assumes correct installation, and if the installation method doesn’t follow the specified standard, the warranty claim gets denied. That’s the hidden cost of hiring the cheapest bidder.

Westlight Windows Orange County installs the VLX 80 to AAMA 2400/2410 standards. The process starts before the window is even ordered. We measure the existing opening to confirm the rough opening dimensions, squareness, and condition of the framing. In Orange County, CA, we frequently find water damage hiding in stucco and wood frame homes built in the 1970s and 1980s, from Fullerton to Lake Forest. You fix that during installation, not after.

On install day, the old window comes out and the new VLX 80 goes in level, plumb, and square. The unit gets shimmed precisely, then secured. Every perimeter joint receives AAMA 812 low-expansion foam sealant. This foam fills voids in the rough opening, seals the gap between frame and framing, and doesn’t bow the window frame the way improperly applied high-expansion foam can. After the foam cures, exterior flashing and trim are installed and sealed.

Finally, we run a water test on critical detail points and walk the finished opening with you. You see the glass clean, the frame square, the sealant bead uniform. Orange County’s climate, with its dry summers, marine layer, and occasional driving winter rain, is kind to windows in most conditions. But when water gets driven against a wall by wind, any installation deficiency shows up immediately. Ours are designed not to.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in Orange County

You know the window. You know the opening. Now you need the number. Call (424) 414-2048 and we’ll start with a phone conversation about your project size, glass preference, and timeline, then schedule a free on-site measurement anywhere in Orange County, CA. You’ll receive a written line-item quote with no hidden add-ons and no pressure. Just the window, the install, and the warranty, done right.

Written by the team at Westlight Windows Orange County, authorized ViewLux installation partner serving Orange County, CA.
